Home Nitrogen Gas Generator NITROSource PSA Nitrogen Gas Generator (5% to 5 ppm maximum remaining oxygen content)
NITROSource Compact PSA Nitrogen Gas Generator (5% to 10 pmm maximum remaining oxygen content) Call for pricing
Back to products
Air Receivers Call for pricing

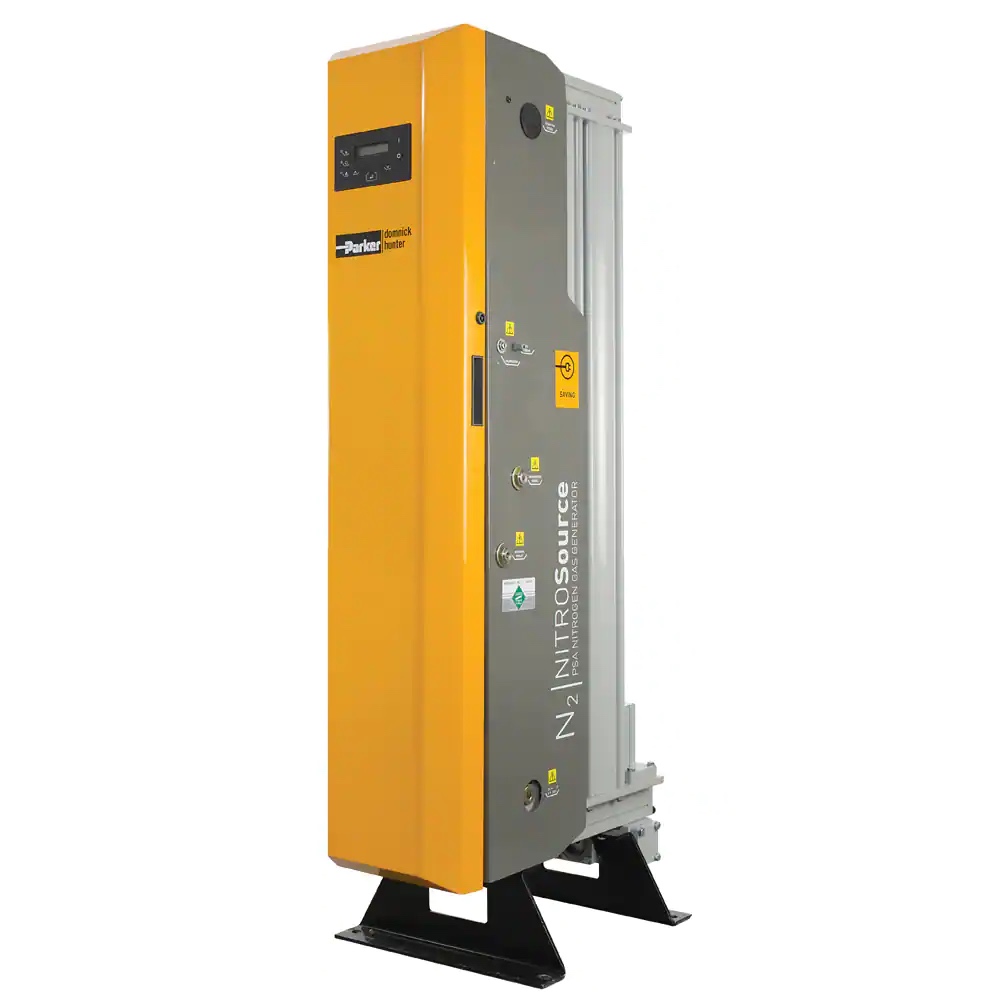

NITROSource PSA Nitrogen Gas Generator (5% to 5 ppm maximum remaining oxygen content)

Call for pricing

Category: Nitrogen Gas Generator
Share:
  • Description
  • Reviews (0)
Description

Advanced technology nitrogen gas generator for industry leading performance; a source of increased productivity, sustainability and profitability. NITROSource provides nitrogen gas of 95% to 99,9995% equivalent nitrogen purity.

Technical Specifications

  • Minimum Inlet Pressure Rating: 5 barg (73 psig)
  • Outlet Connection Size: G½
  • Minimum Operating Temperature: 5°C (41°F)
  • Inlet Connection Size: G1
  • Maximum Inlet Pressure Rating: 13 barg (189 psig)
  • Maximum Operating Temperature: 50°C (122°F)
  • Brand: Parker
  • Division: Gas Separation and Filtration Division EMEA
  • Industry: • Aviation
    • Food & Beverage
    • Industrial Manufacturing Equipment
    • Oil & Gas
  • Application: Industrial Nitrogen Gas Generation
  • Technology: Filtration
  • Product Type: Nitrogen Gas Generator
  • Flow Rate: View Part Number for details.
  • Gas Type Generated: Nitrogen
  • Gas Purity: Low, High or Ultra High
  • Inlet Port Size: G 1
  • Outlet Port Size: G ½
  • Port Type: BSPP
  • Electrical Requirements: Yes
  • Input Voltage: 100 – 240 VAC ±10%, 50/60 Hz
  • Ambient Temperature: 5 to 50 °C, 41 to 122 °F
  • Inlet Pressure Rating: View Part Number for details.
  • Ingress Protection Rating: IP20, NEMA 1
  • Inlet Air Quality Specifications: ISO 8573-1:2010 Class 2.2.2 (2.2.1 with high oil vapour content)
  • Oxygen Content: View Part Number for details.
  • Weight: View Part Number for details.
  • Height: View Part Number for details.
  • Width: View Part Number for details.
  • Depth: View Part Number for details.
  • Product Series: NITROSource PSA
  • Noise Level: < 80 dB (Avg)
  • Energy Saving: View Part Number for details.

Safety Warning

FAILURE OR IMPROPER SELECTION OR IMPROPER USE OF THE PRODUCTS DESCRIBED HEREIN OR RELATED ITEMS CAN CAUSE DEATH, PERSONAL INJURY AND PROPERTY DAMAGE. This document and other information from Parker-Hannifin Corporation, its subsidiaries and authorized distributors provide product or system options for further investigation by users having technical expertise. The user, through its own analysis and testing, is solely responsible for making the final selection of the system and components and assuring that all performance, endurance, maintenance, safety and warning requirements of the application are met. The user must analyze all aspects of the application, follow applicable industry standards, and follow the information concerning the product in the current product catalog and in any other materials provided from Parker or its subsidiaries or authorized distributors. To the extent that Parker or its subsidiaries or authorized distributors provide component or system options based upon data or specifications provided by the user, the user is responsible for determining that such data and specifications are suitable and sufficient for all applications and reasonably foreseeable uses of the components or systems.

Full Product Description

The NITROSource nitrogen gas generators unique design and advanced energy saving technology means less compressed air is needed to generate more nitrogen than any other gas generator currently available. Supported by substantially lower servicing costs, reduced downtime and a longer working life than comparable nitrogen generators, NITROSource offers the most cost-efficient nitrogen supply available; significantly more affordable and safer than traditional delivery methods of supply, such as gas cylinders and mini bulk storage.

Key features of the Parker NITROSource:
• Energy saving technology – matches compressed air flow to the nitrogen outlet flow. Resulting in reducing compressed air use, which sequentially lowering energy consumption and save operational costs.

• Lower cost maintenance, extensive working life – the Carbon Molecular Sieve, the ‘engine’ of the generator delivers nitrogen more efficiently, leading to a very long working life – and major savings on maintenance.

• Availability of five year extended warranty – offering the assurance of no unexpected maintenance costs and maximised factory up-time.*

• Industry compliance – food and pharmaceutical safe, in line with European statute (EIGA) and the USA Food & Drugs Administration (FDA Article 21) and Pharmacopeia compliance.

• Unique gas quality control system

• Remote monitoring – enabling connection to proprietary remote management and the generator control systems to control and track gas parameters from a central location

• Easily upgradable supply – simply add extra generators as the application requirement grows.

NITROSource is appropriate for manufacturers and producers in a wide range of industries:
• Food production, processing, storage and packaging – snacks, dairy, grated cheese, milk powder coffee, edible oils

• Beverage and bottling

• Pharmaceuticals – primary and secondary manufacturing, centralised laboratory, inert storage and packaging

• Materials processing – laser cutting, heat treatment and composite manufacturing

• Electronics

For more information or a detailed discussion about your specific requirements please contact Parker or an authorised Parker distributor.

*Subject to terms and conditions. Please contact your local authorised Parker distributor.
